API Keys & Access | Mappinest Docs

Overview

API keys are the main way to authenticate requests to Mappinest APIs and control access to your data. You can find them in the console under Access → API Keys. When you are logged in, the default API key is automatically embedded in docs examples and studio previews.

API keys are passed through the ?key=<key> query parameter on request URLs. You can create additional keys when you need separate scopes, domain rules, or environments.

What you can do in this section

Create and rotate API keys from one console view.
Control scopes and key type (web, desktop, or server).
Restrict browser access with domain allowlists and CORS checks.
Restrict access to specific tilesets or datasets using username.tileset IDs.

Create and manage API keys

Use the API Keys page in the console to create keys, rotate the default key, and edit key policies for production use.

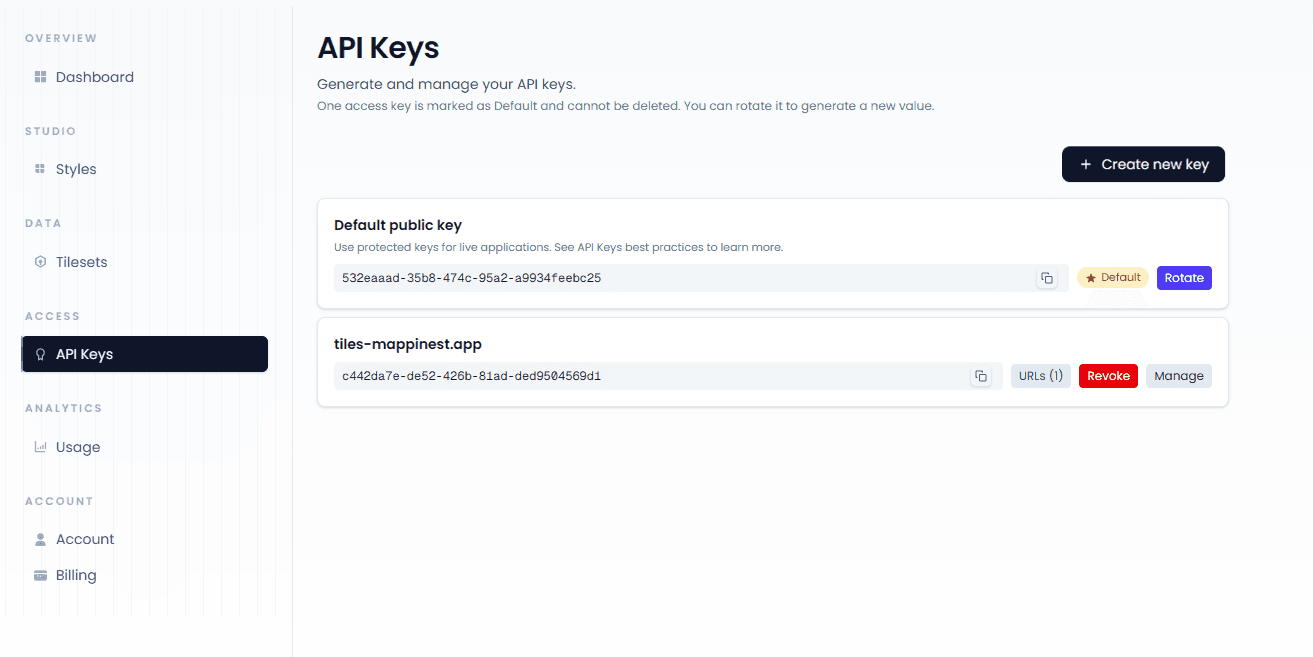

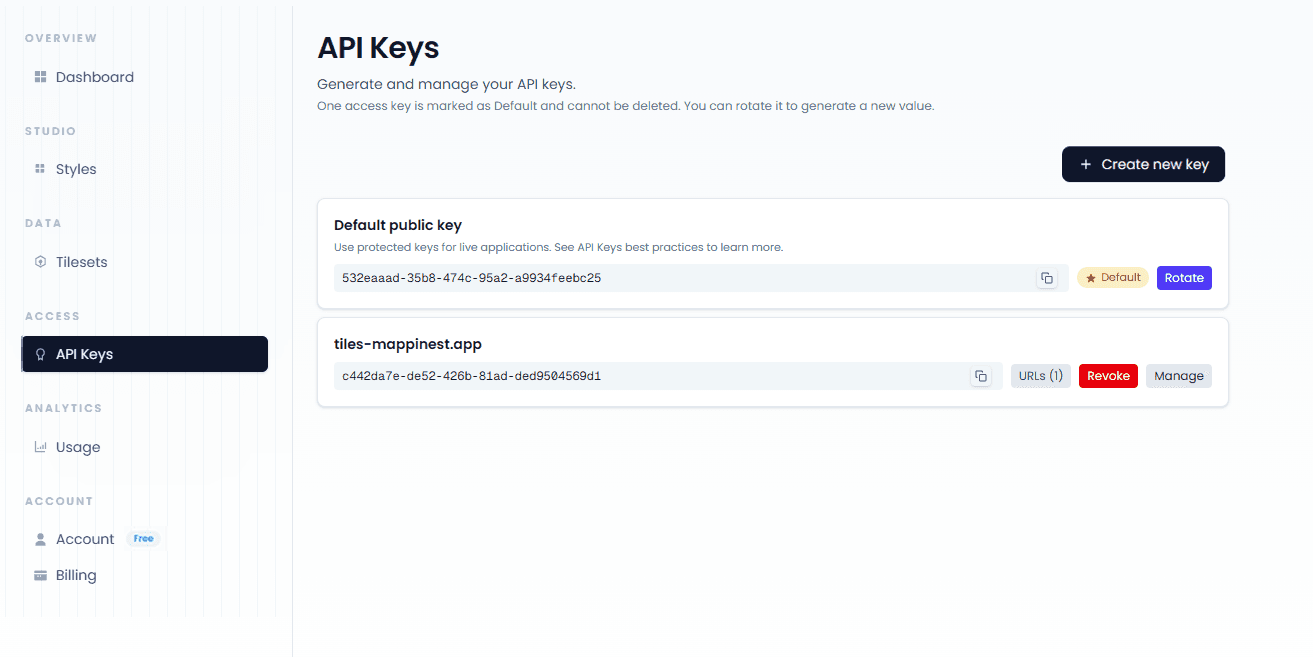

API keys list and actions in the console

Default API key

The default API key is read-only. You can rotate it but you cannot edit or delete it.

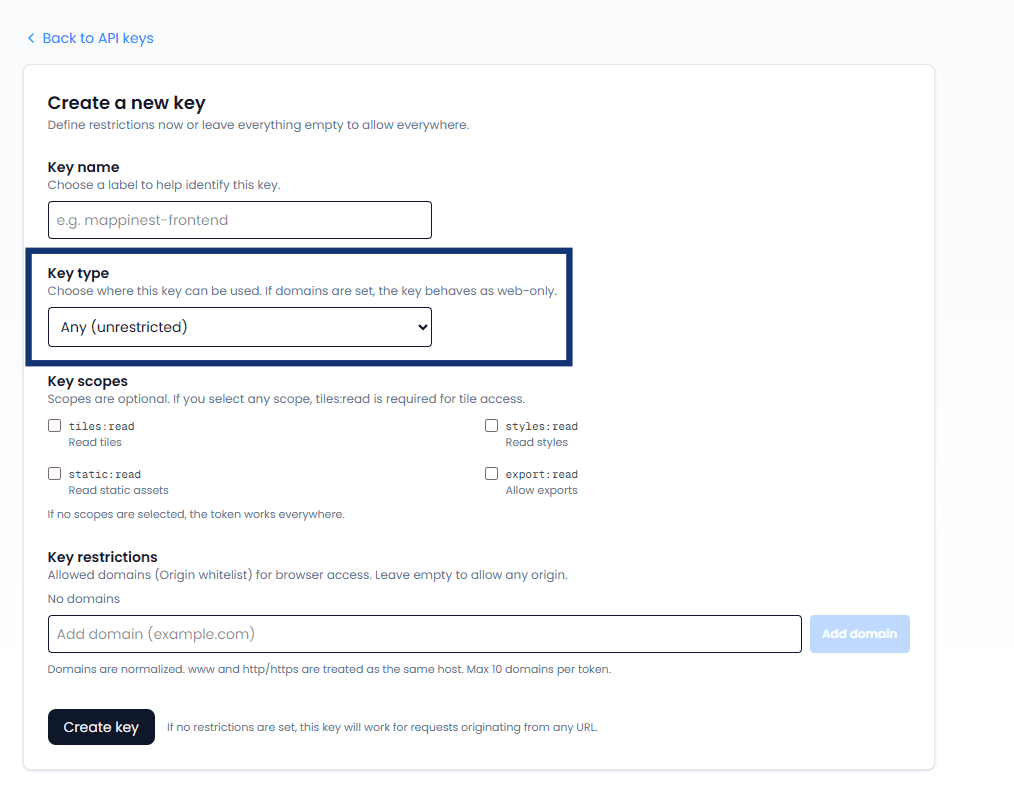

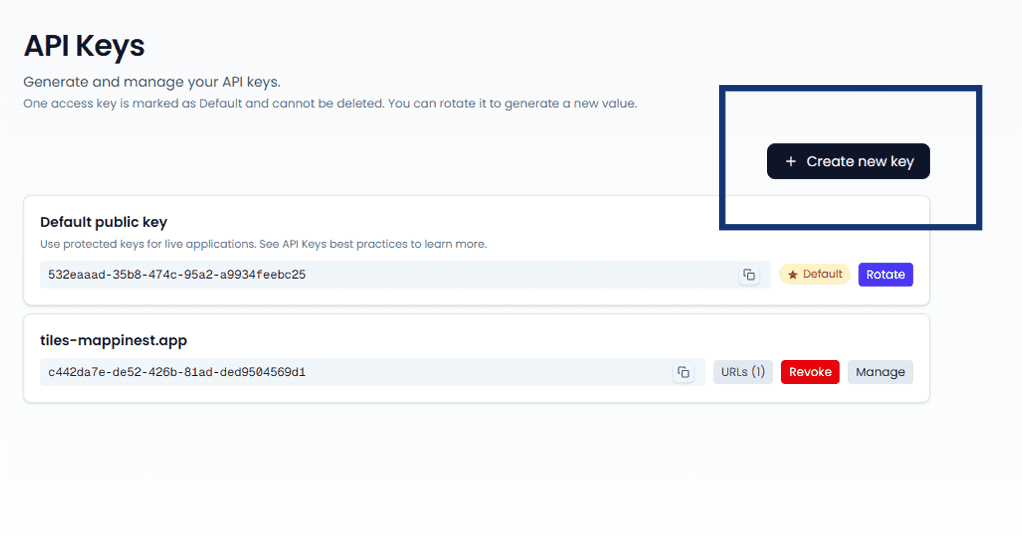

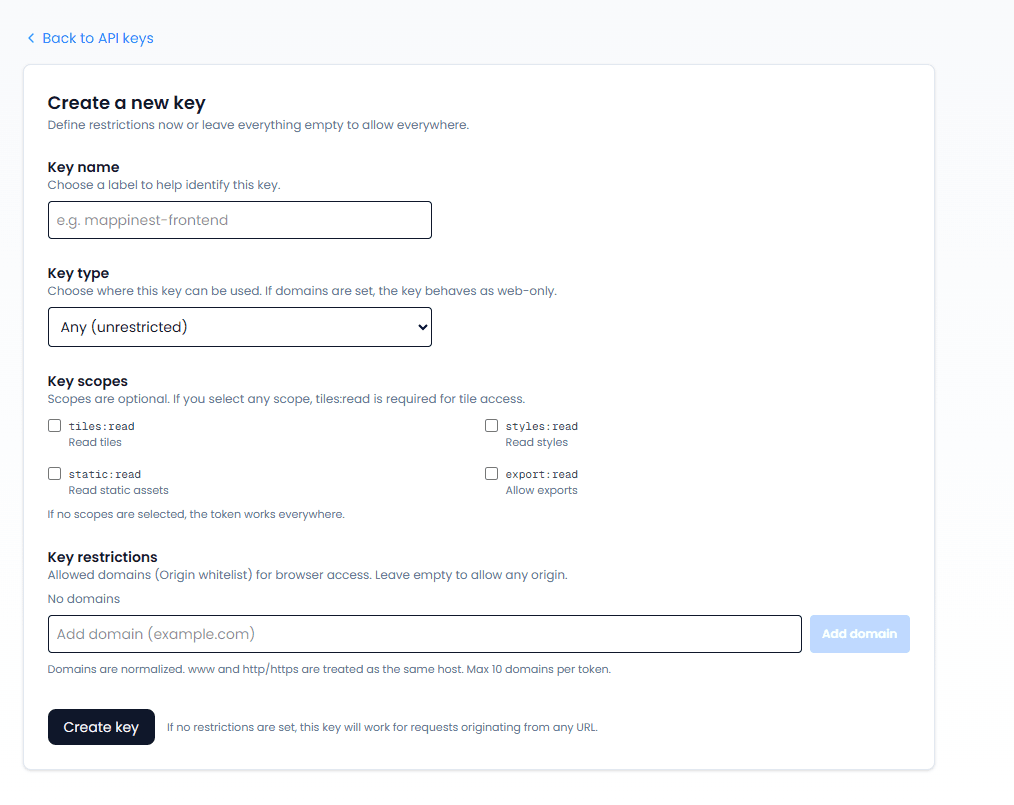

Create key form

Use this button to create API key dialog with key type, scopes, and domain restriction fields.

Edit key policy form

Edit form for an existing key with updated scopes, domains, and tileset restrictions.

Key types

Key type defines where a key can be used by default. Start with Any (unrestricted) during setup, then move to web, desktop, or server when you want tighter production rules.

Type	Origin required	Typical use
Any (unrestricted)	No	General use, server or browser
web	Yes	Browser apps
desktop	No	QGIS/ArcGIS, desktop apps, and mobile apps
server	No	Back-end services, exports

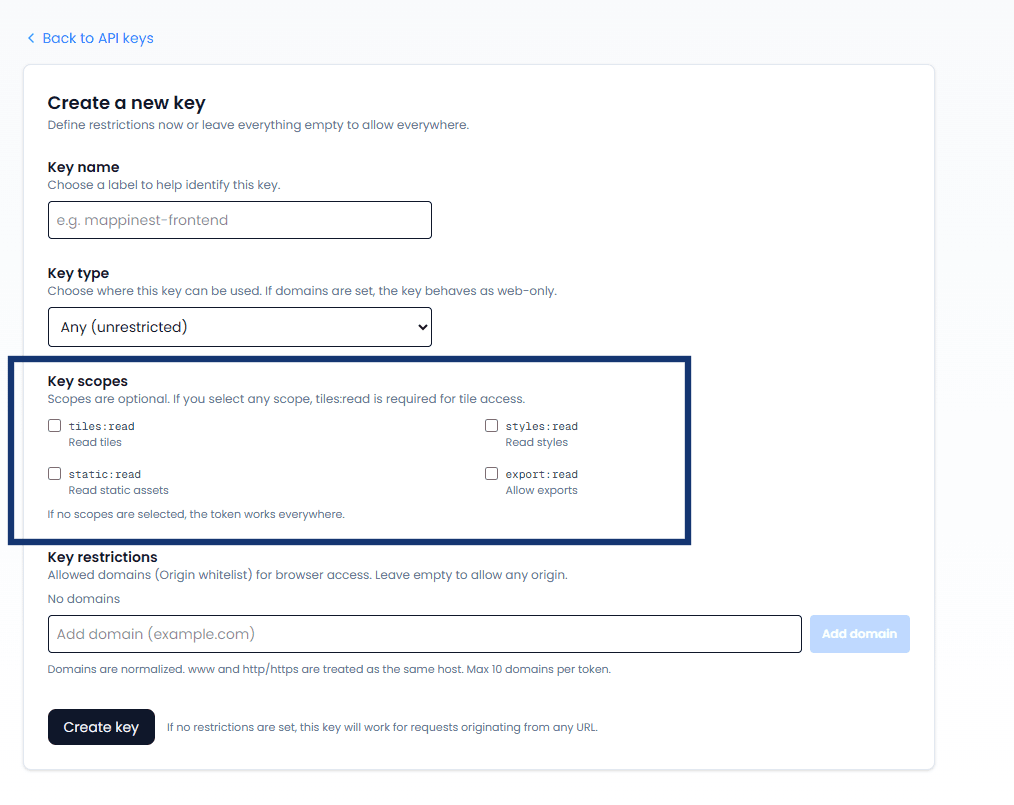

Scopes

Scopes are optional for existing read integrations. If you set any scopes, Tiles API access requires tiles:read, Maps API access requires maps:read, and Dataset API reads require datasets:read.

tiles:read
maps:read
datasets:read
static:read

Serving scopes

When scopes are non-empty, a request returns 403 if the required tiles:read, datasets:read, maps:read scope is missing.

URL restrictions

Add domains to restrict browser access. When the list is non-empty, the request must include an Origin header and the host must match the allowlist. Domain restrictions rely on this browser Origin header and enforce the allowlist at request time.

Browser sends Origin with the request.
Mappinest compares Origin against allowed_domains on the API key.
If it matches, the request is allowed and CORS response headers are returned.
If it does not match, the request is rejected before tile data is returned.

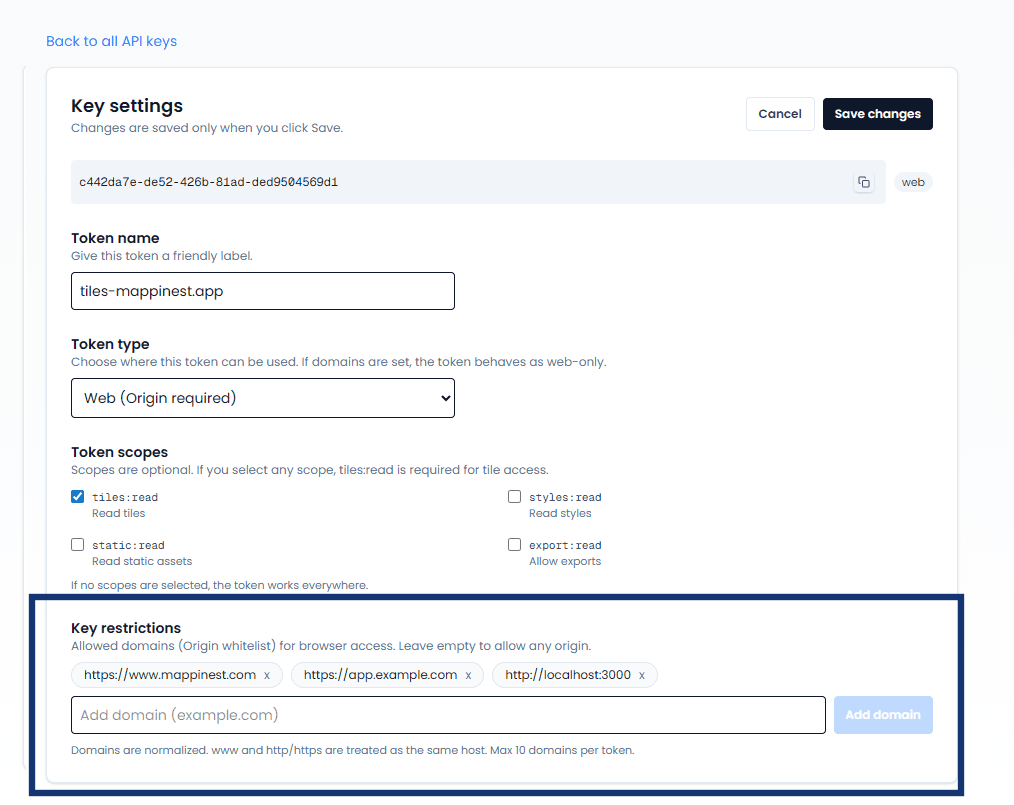

Domain restrictions and CORS settings in API key form

Production web app
https://www.mappinest.com
Staging app
https://app.example.com
Local development
http://localhost:3000

Domains are normalized. http/https and www are treated as the same host (port and path are ignored).

Limits

Limit	Value
Free plan keys	2 per account
Flex and Pro plan keys	25 per account
Max domains per key	10

Rules at a glance

No restrictions (no domains, no tilesets, no scopes, key type unset) means the key works in browser and non-browser clients.
If allowed_domains is set, Origin is required and must match. Non-browser requests are blocked.
If key type is web and no domains are set, Origin is still required and any host is allowed.
If key type is desktop or server and no domains are set, Origin is optional.
If allowed_tilesets is set, only those tilesets are allowed.
If scopes is set, tiles:read, datasets:read, and maps:read must be present for respective access.

Non-browser clients usually do not send Origin. That is why strict domain allowlists are mainly for browser-facing keys.

Desktop GIS

Use a desktop or server key (or an unrestricted key). If allowed_domains is set, desktop clients will be rejected because they do not send Origin.

Mobile apps

Use a desktop key without allowed_domains, or an unrestricted key. Native mobile apps do not send Origin, so a web key or a key with domain restrictions blocks their requests.
